DWSCNC DT52-420CY Interpolated Y-Axis Turn-Mill Lathe

DT52-420CY Single-spindle turn-mill lathe with interpolated Y-axis and tailstock

A compact interpolated Y-axis turn-mill lathe for parts requiring turning and secondary milling operations.

Request a Quote View Specifications

Key Advantages

  • Interpolated Y-axis for milling and drilling features
  • Integrated stepped bed structure
  • Tailstock-ready configuration for stable machining
  • Side-mounted chip conveyor layout

Product Overview

The DWSCNC DT52-420CY is designed for buyers who need a compact turn-mill platform with Y-axis capability. It supports process consolidation for smaller turned parts, helping reduce handling between machines.

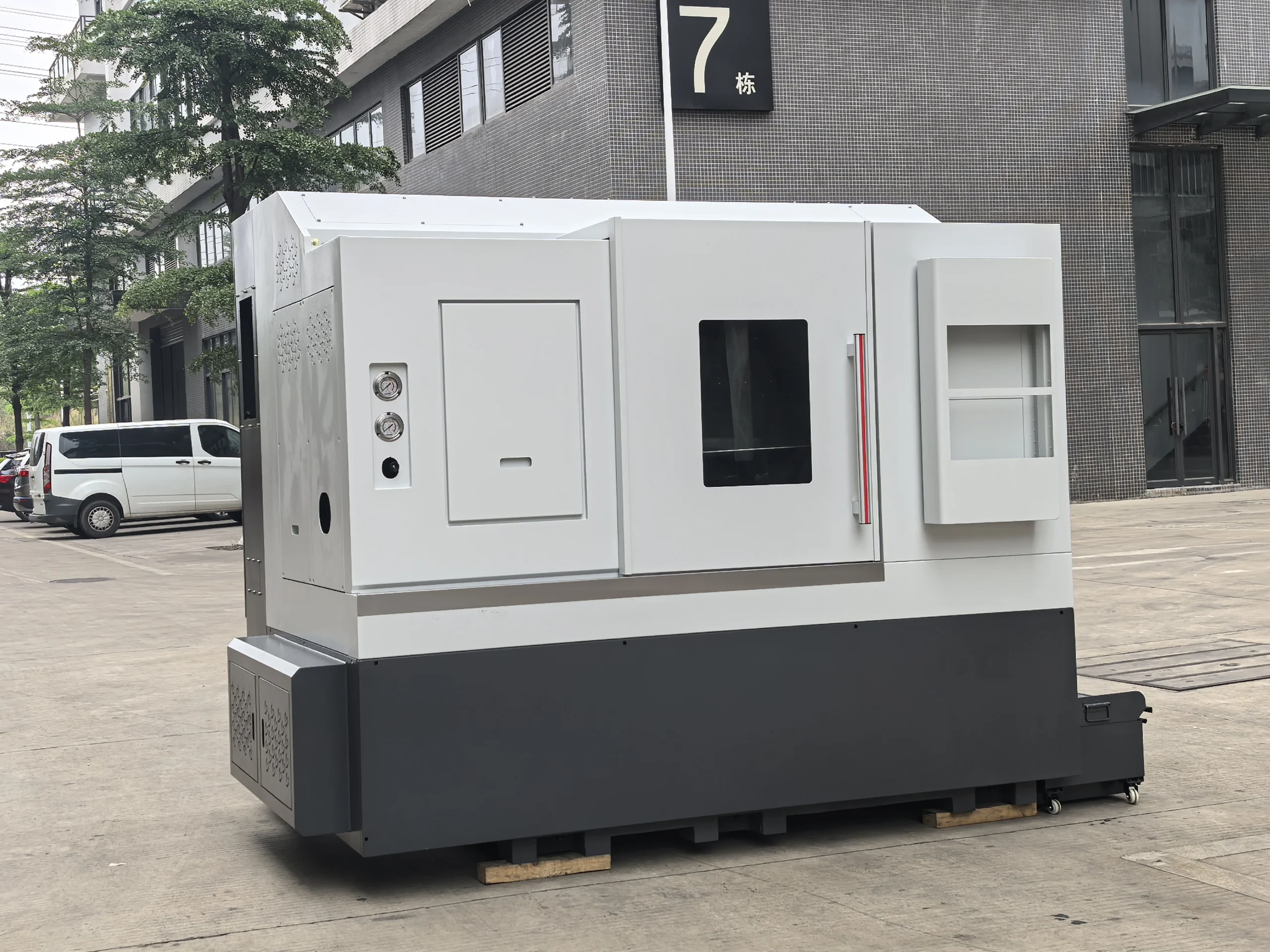

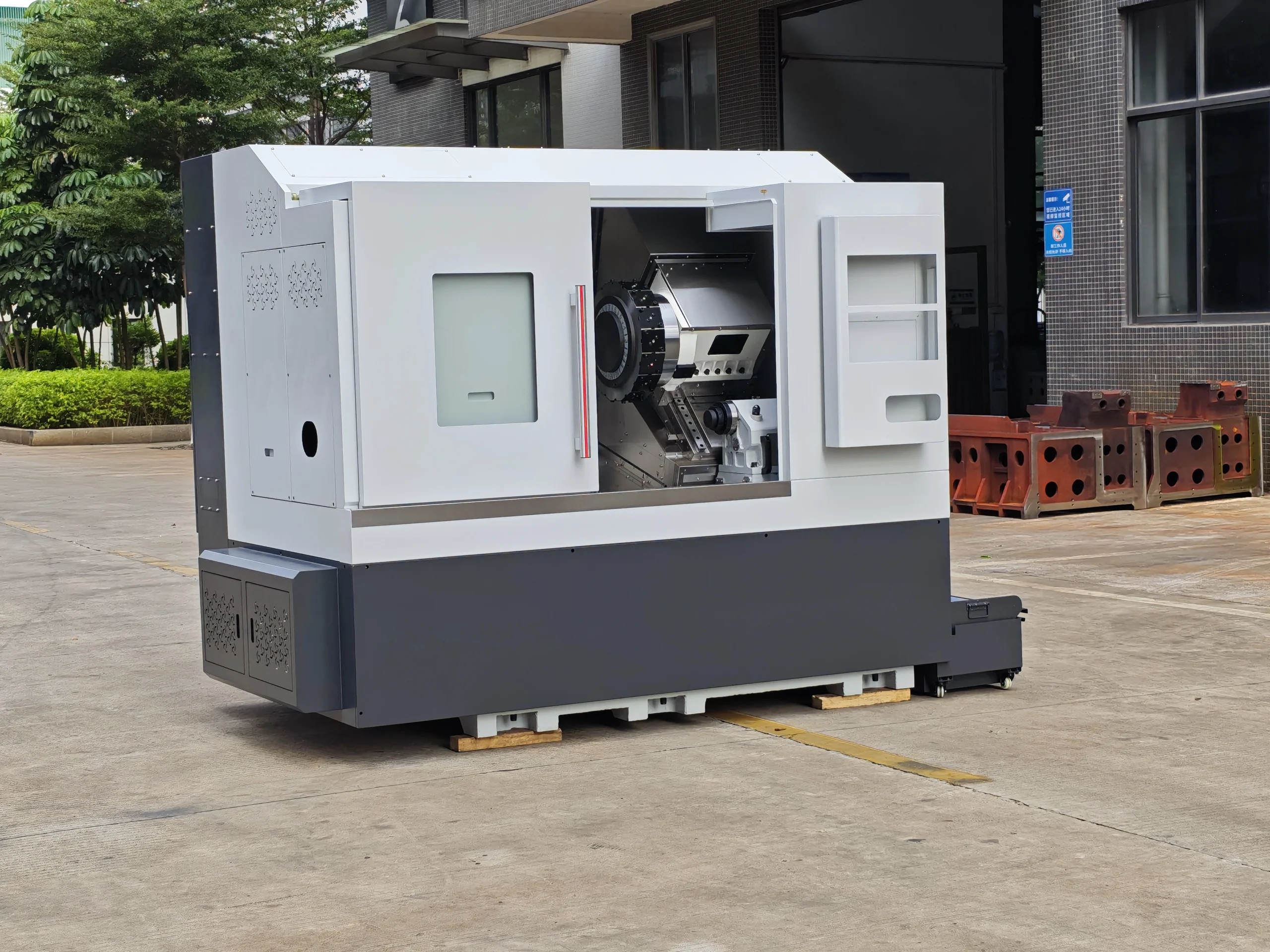

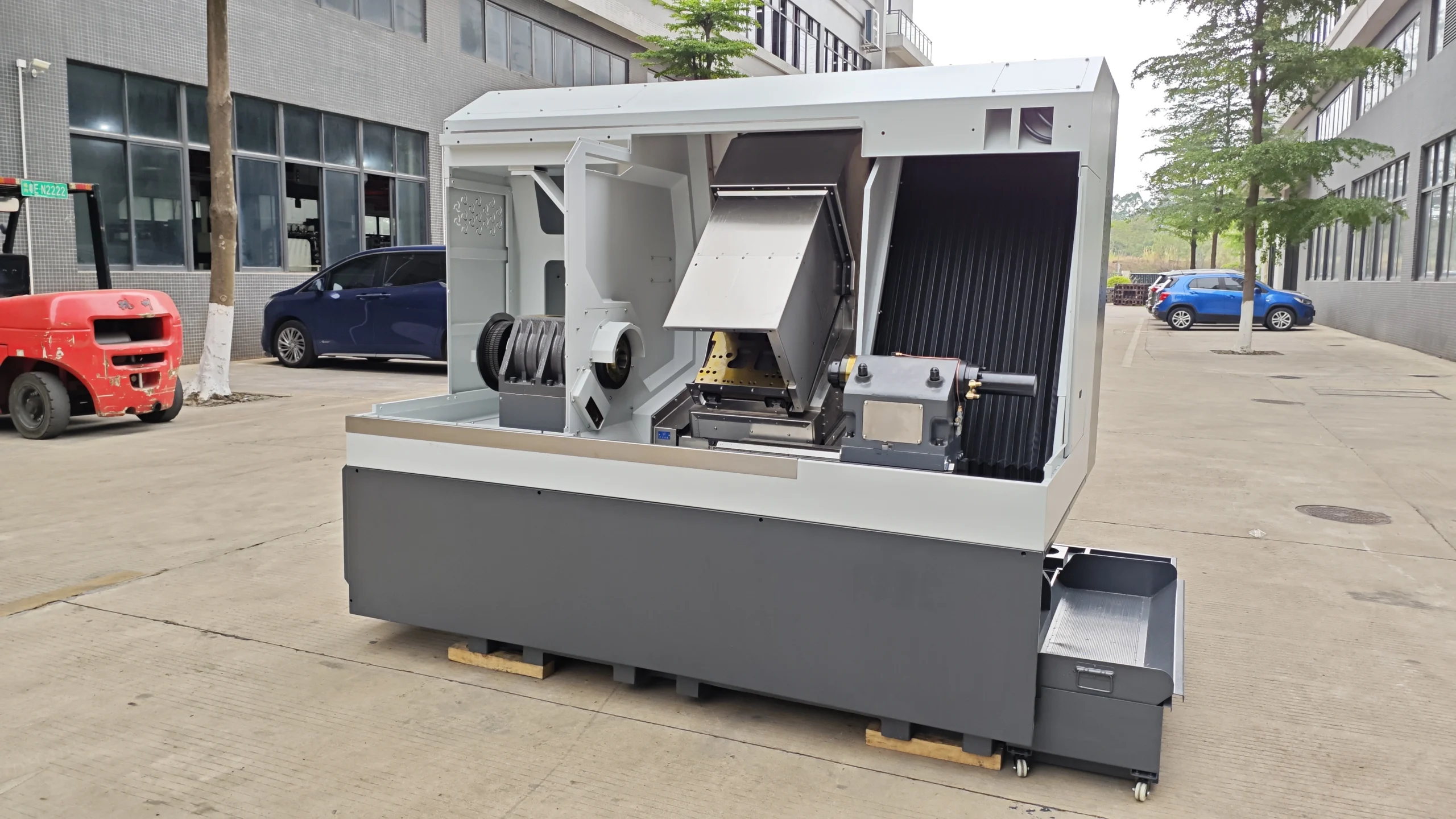

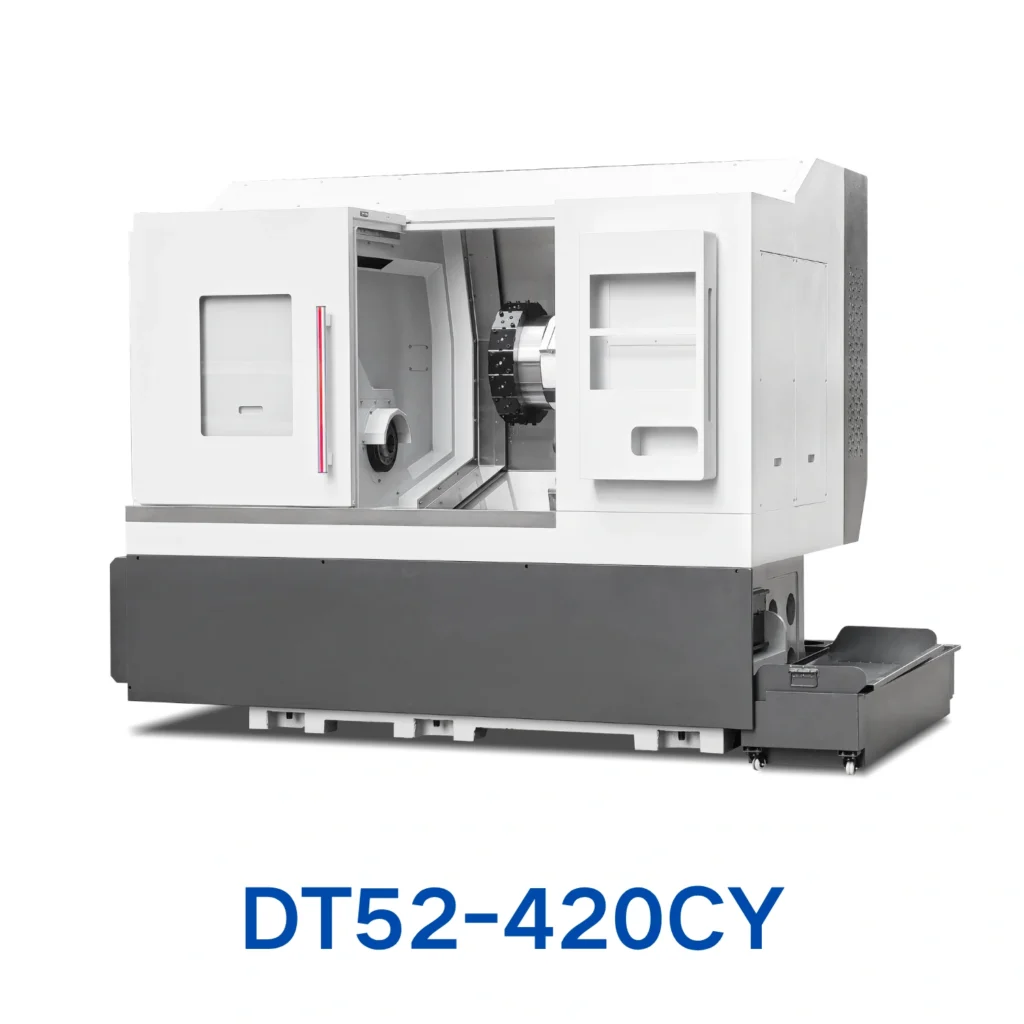

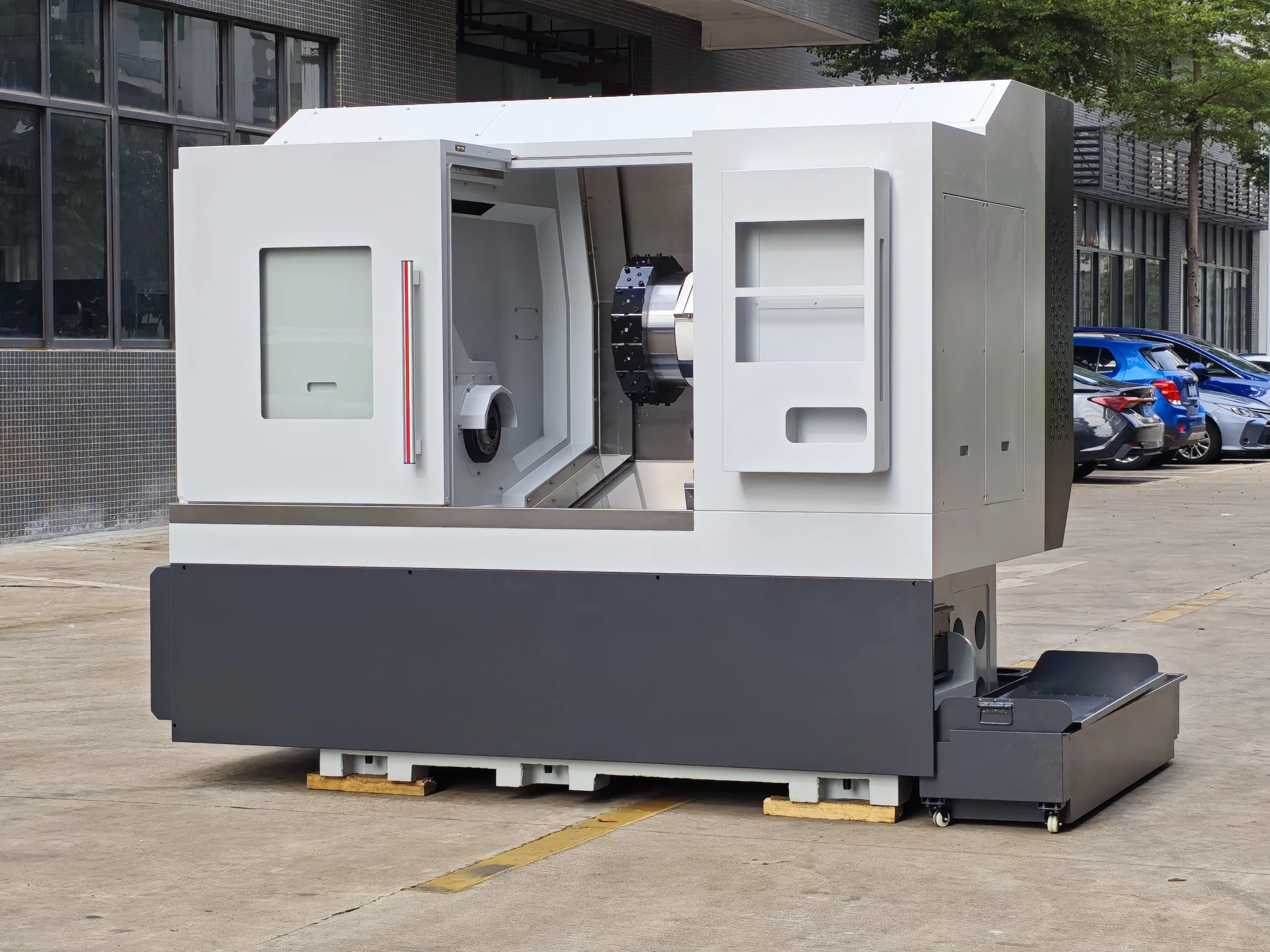

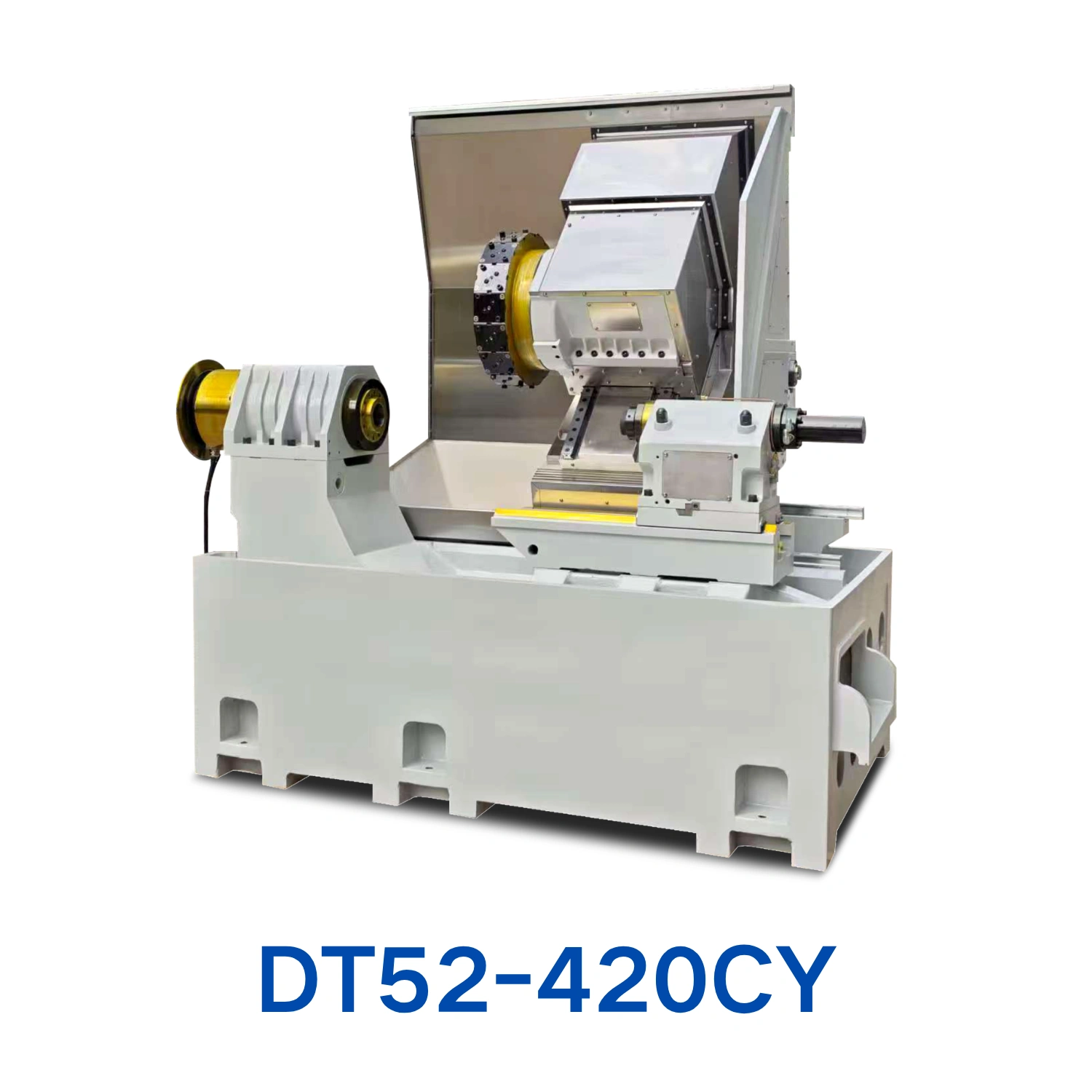

Product Gallery

Technical Specifications

Turning diameter 270 mm disk type / 270 mm shaft type
Turning length 448 mm
Bed structure Integrated 15-degree step bed with 30-degree interpolated Y-axis
Spindle nose A2-5 / A2-6 / A2-8 options
Chip conveyor Side mounted

Applications

  • Precision turned parts
  • Small shafts
  • Valve components
  • Custom metal parts
