Product overview

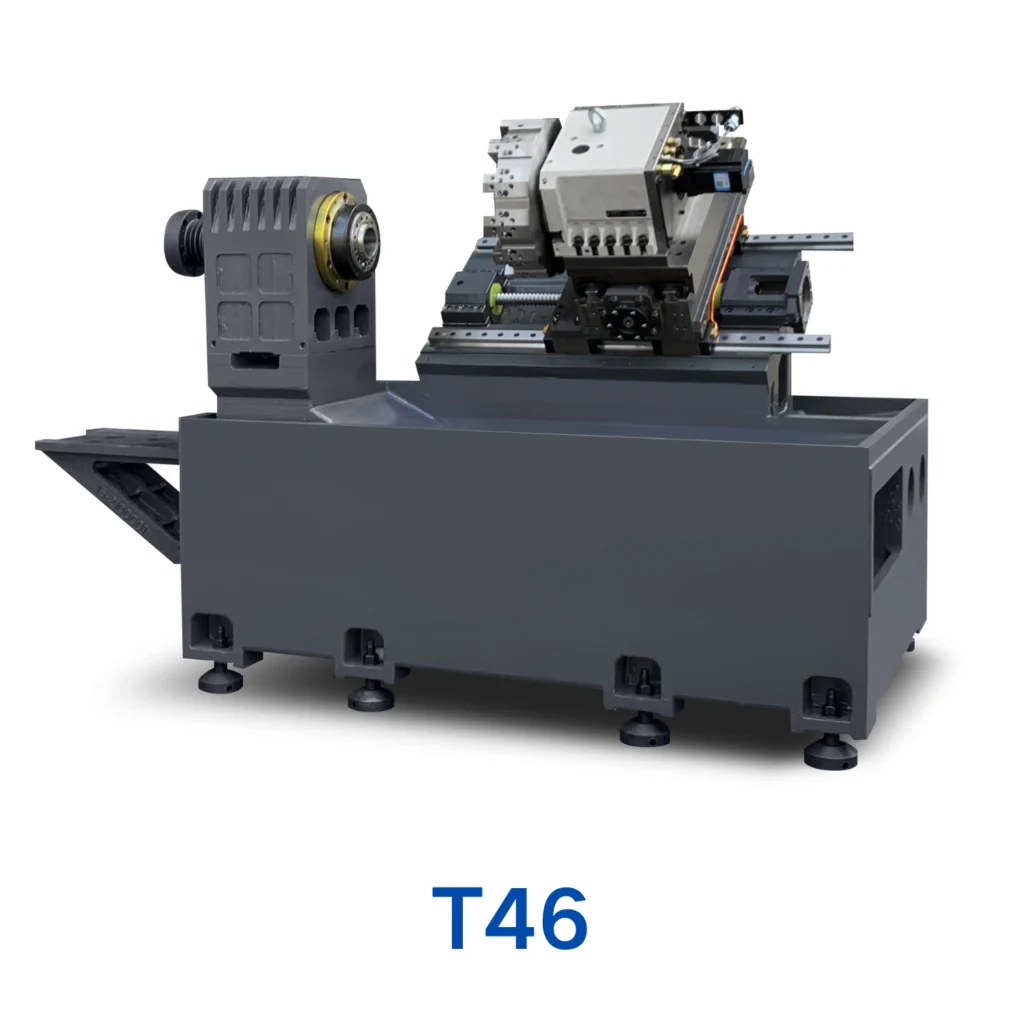

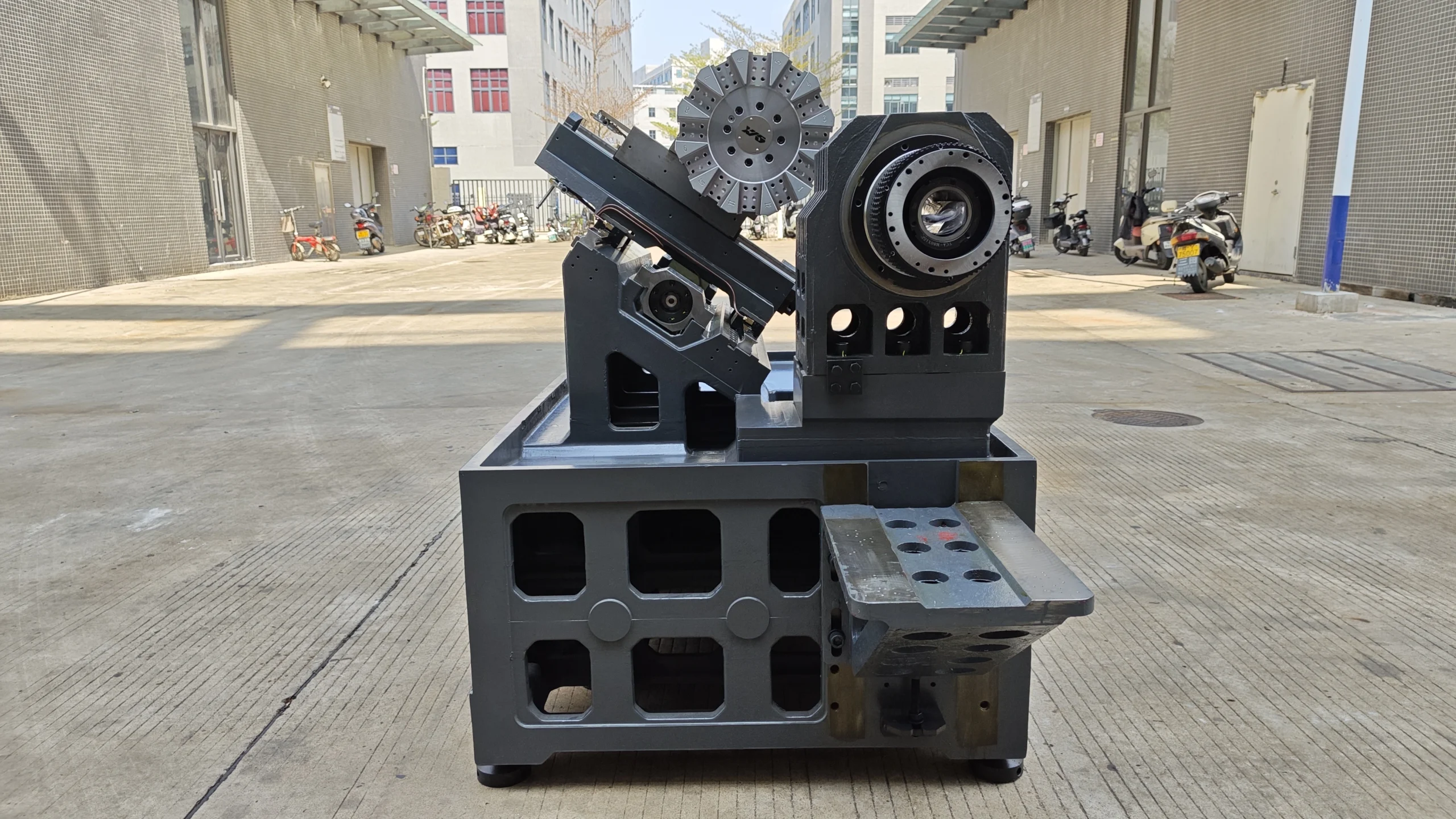

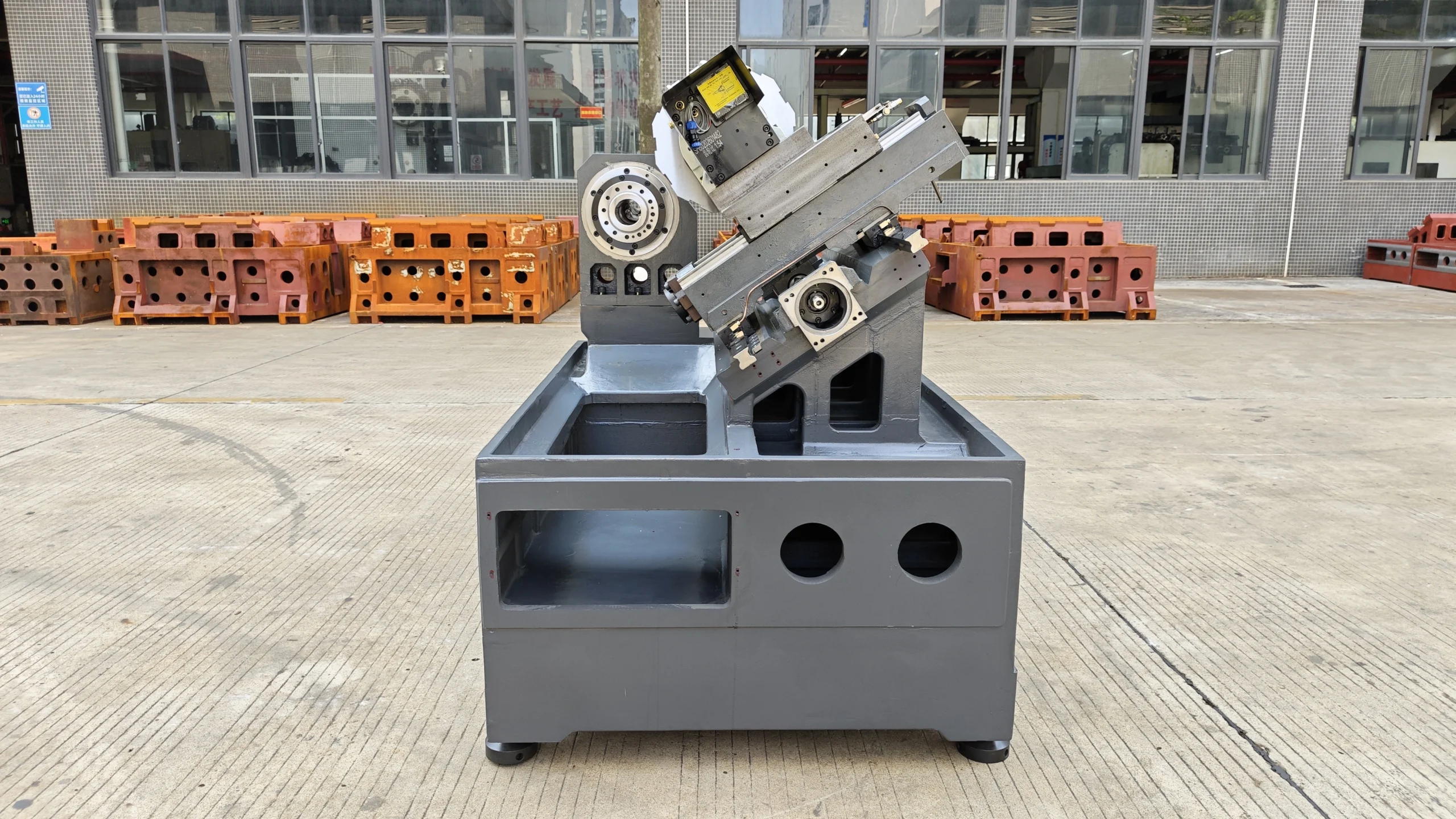

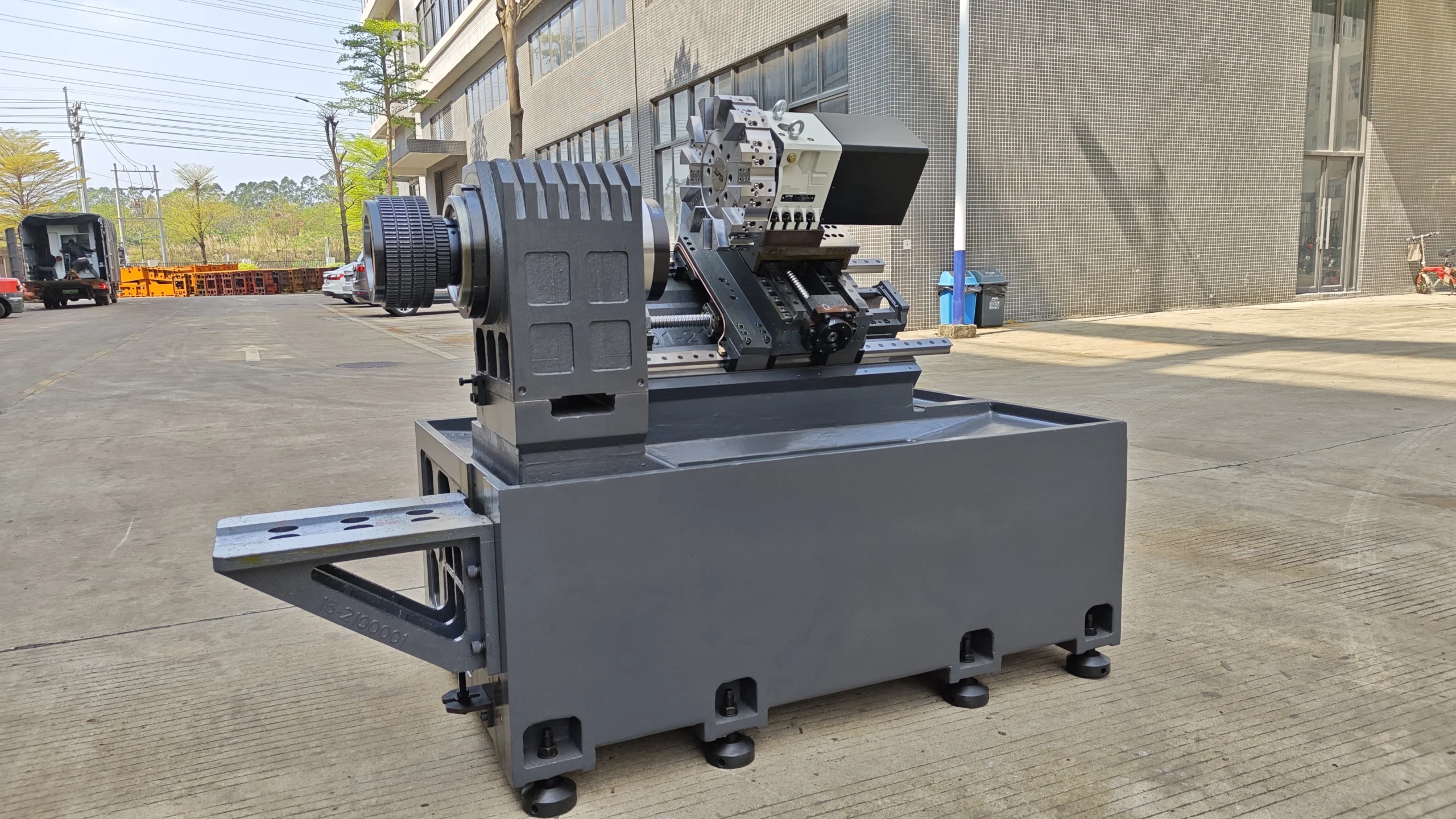

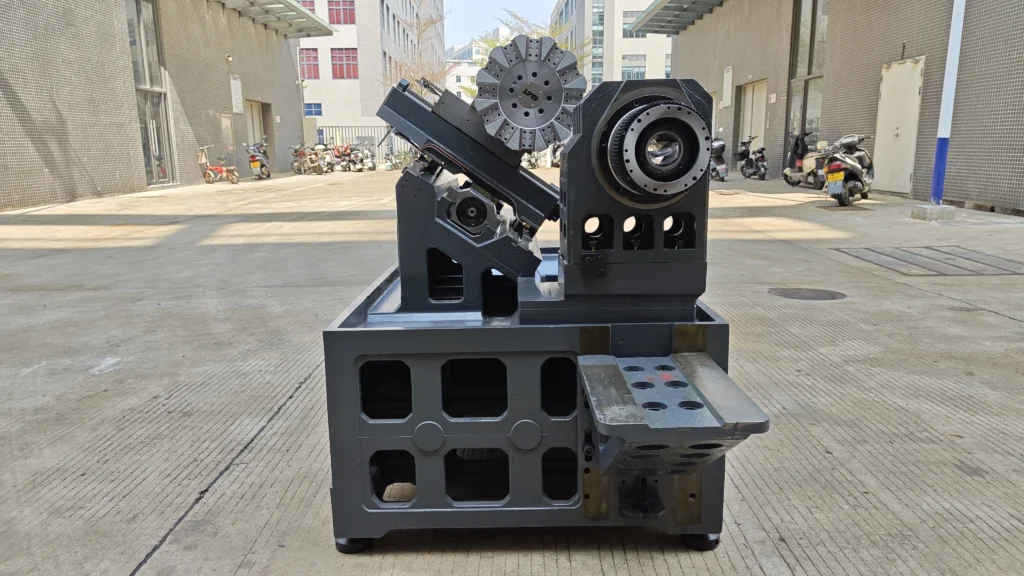

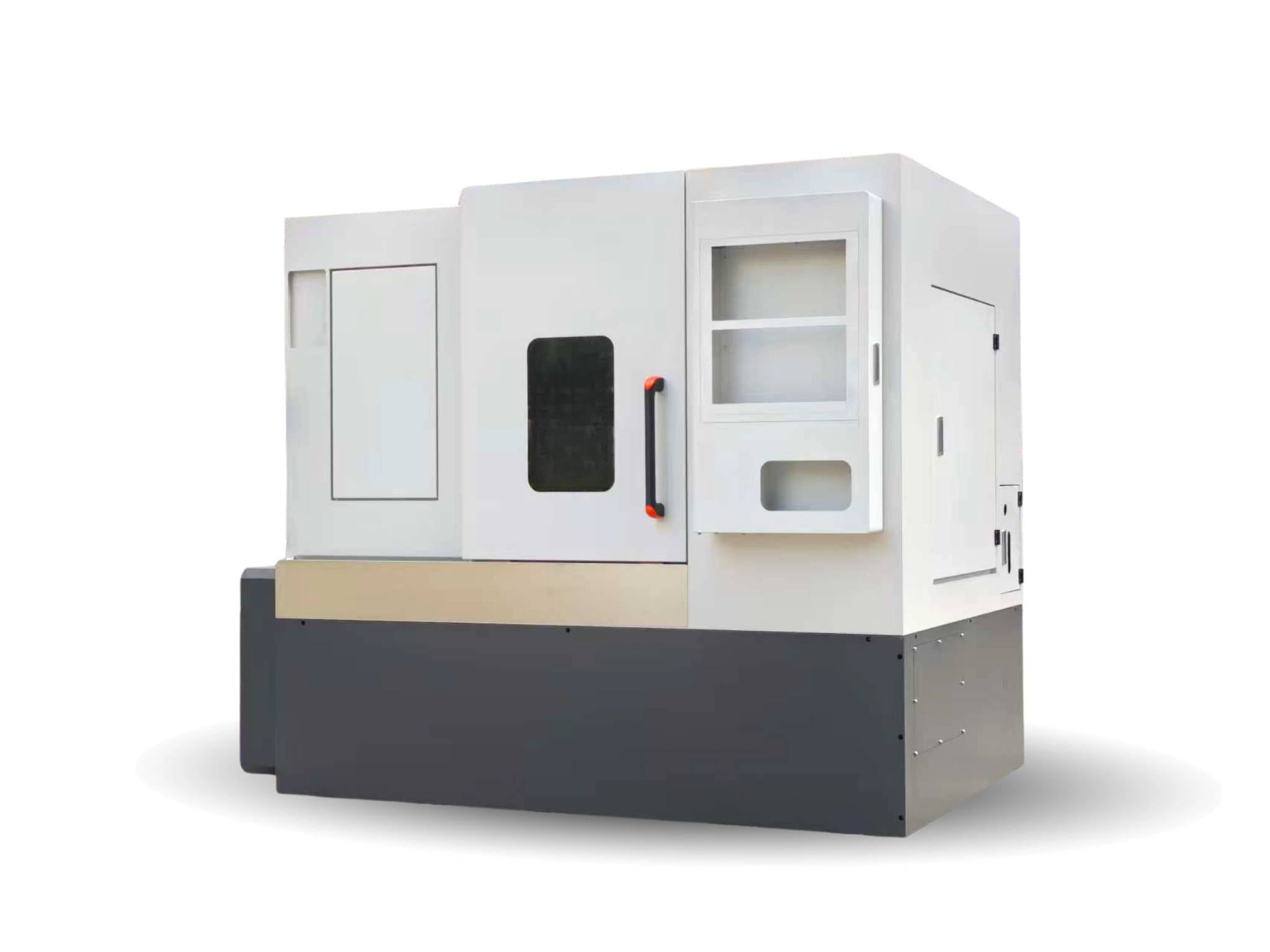

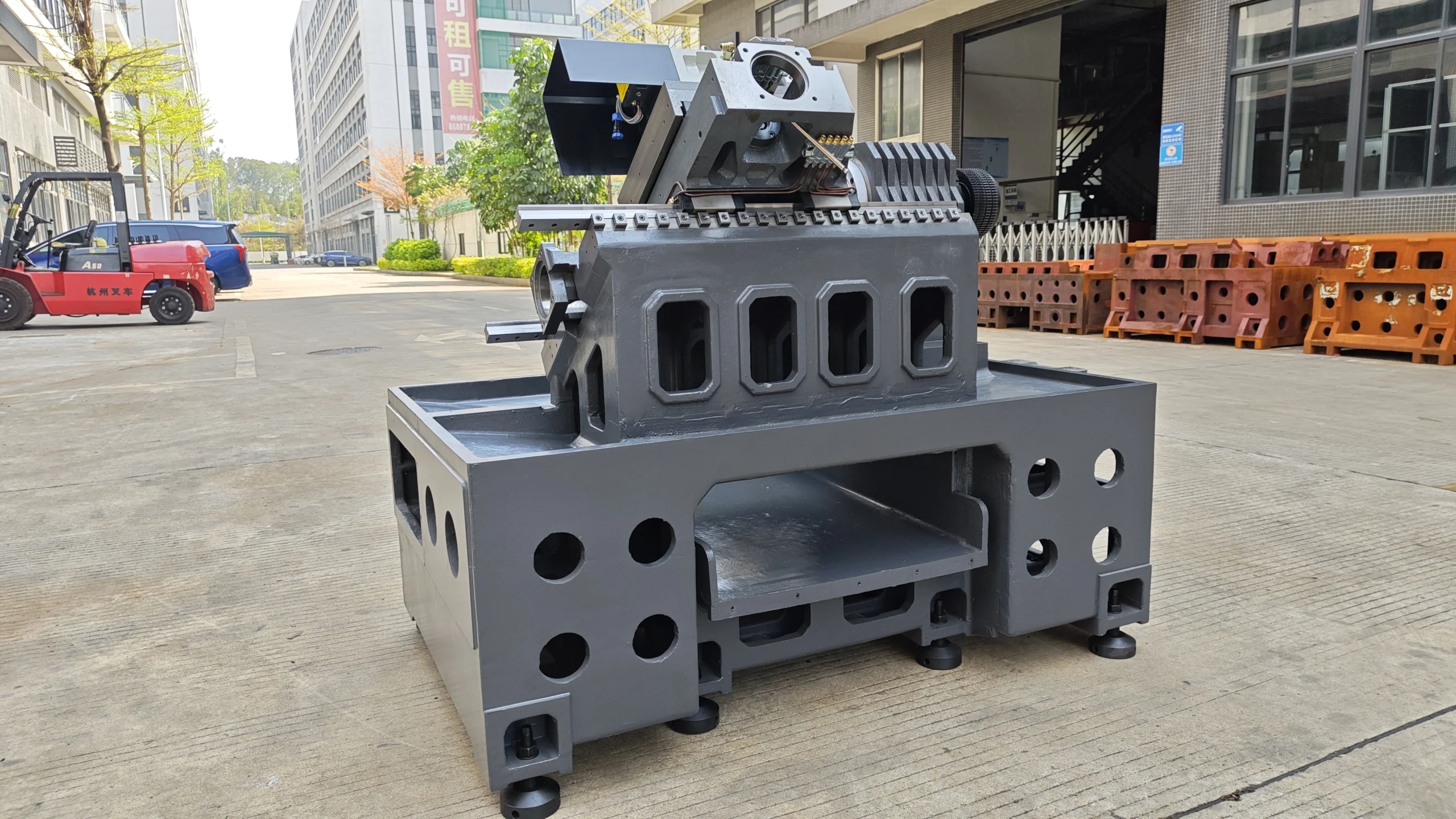

The DWSCNC T46 / T52 is a flexible turning lathe for workshops that need a reliable servo turret platform. It supports common disk and shaft workpieces with optional chip conveyor layouts for different factory plans.
Key advantages
- Servo turret configuration for flexible turning
- Integrated slant bed structure
- Spindle nose options for different chuck sizes
- Independent chip conveyor options
Technical specifications
| Turning diameter | 360 mm disk type / 280 mm shaft type |
|---|---|
| Turning length | 370 mm |
| Bed structure | Integrated 35-degree slant bed |
| Spindle nose | A2-5 / A2-6 options |
| Chip conveyor | Side mounted / rear mounted options |
