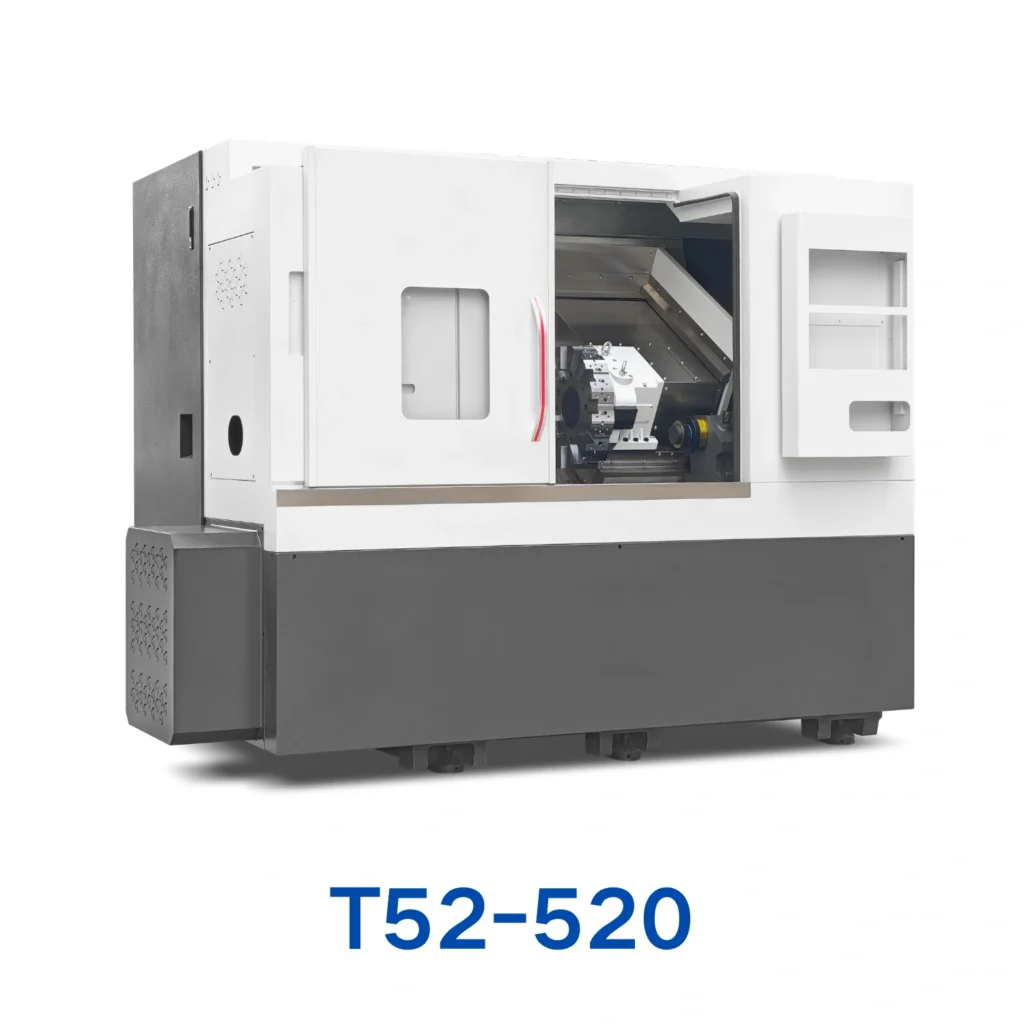

The DWSCNC T52-520 is configured for shaft-type parts that benefit from tailstock support. It gives manufacturers a balanced turning platform for medium workpieces, with optional tailstock and chip conveyor configurations.
Key Advantages
- Tailstock support for improved shaft stability
- Servo turret for flexible tool selection
- Multiple spindle nose options
- Side or rear chip conveyor options
Product Overview

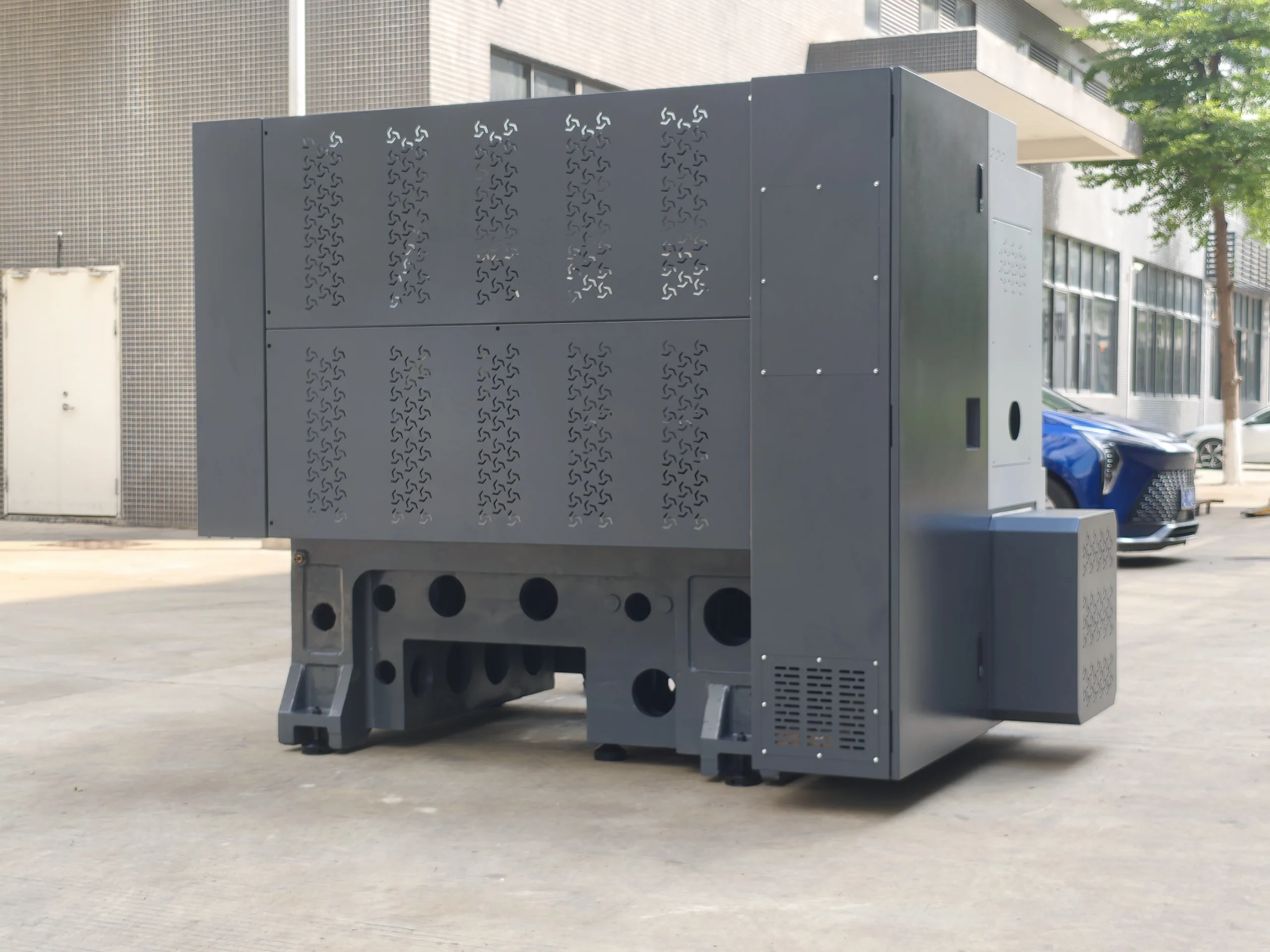

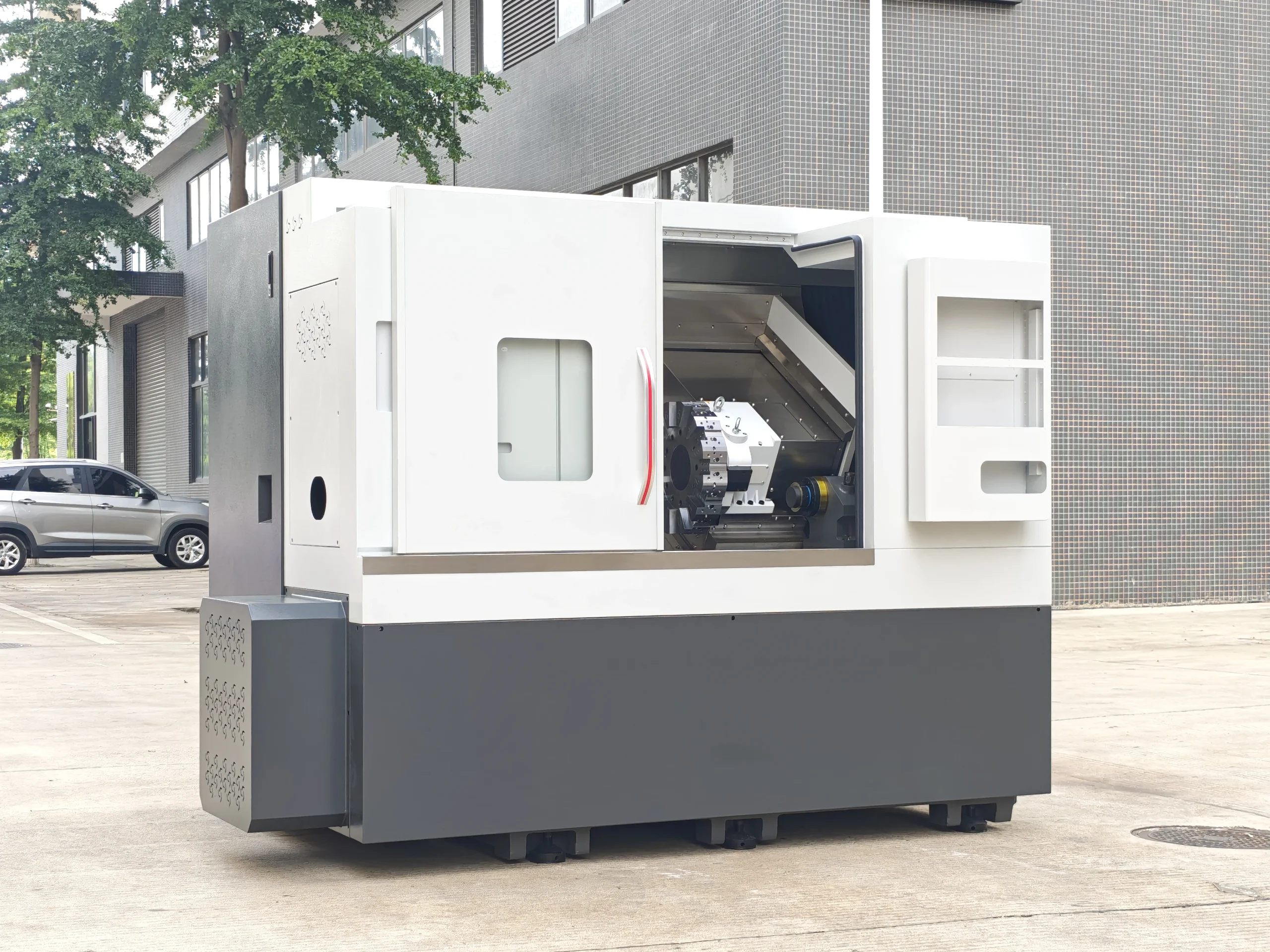

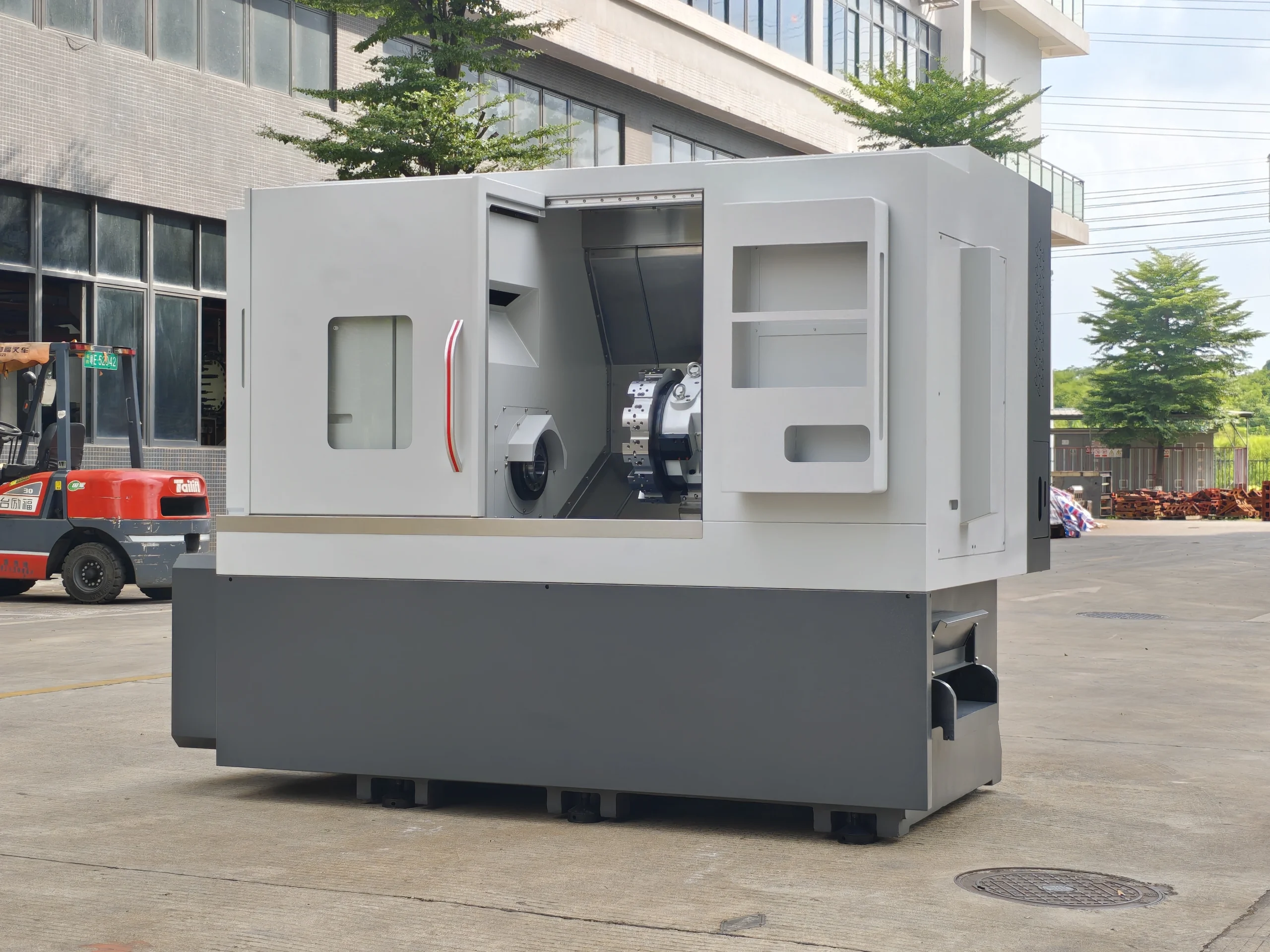

Product Gallery
Technical Specifications
| Turning diameter | 430 mm disk type / 330 mm shaft type |
|---|---|
| Turning length | 508 mm |

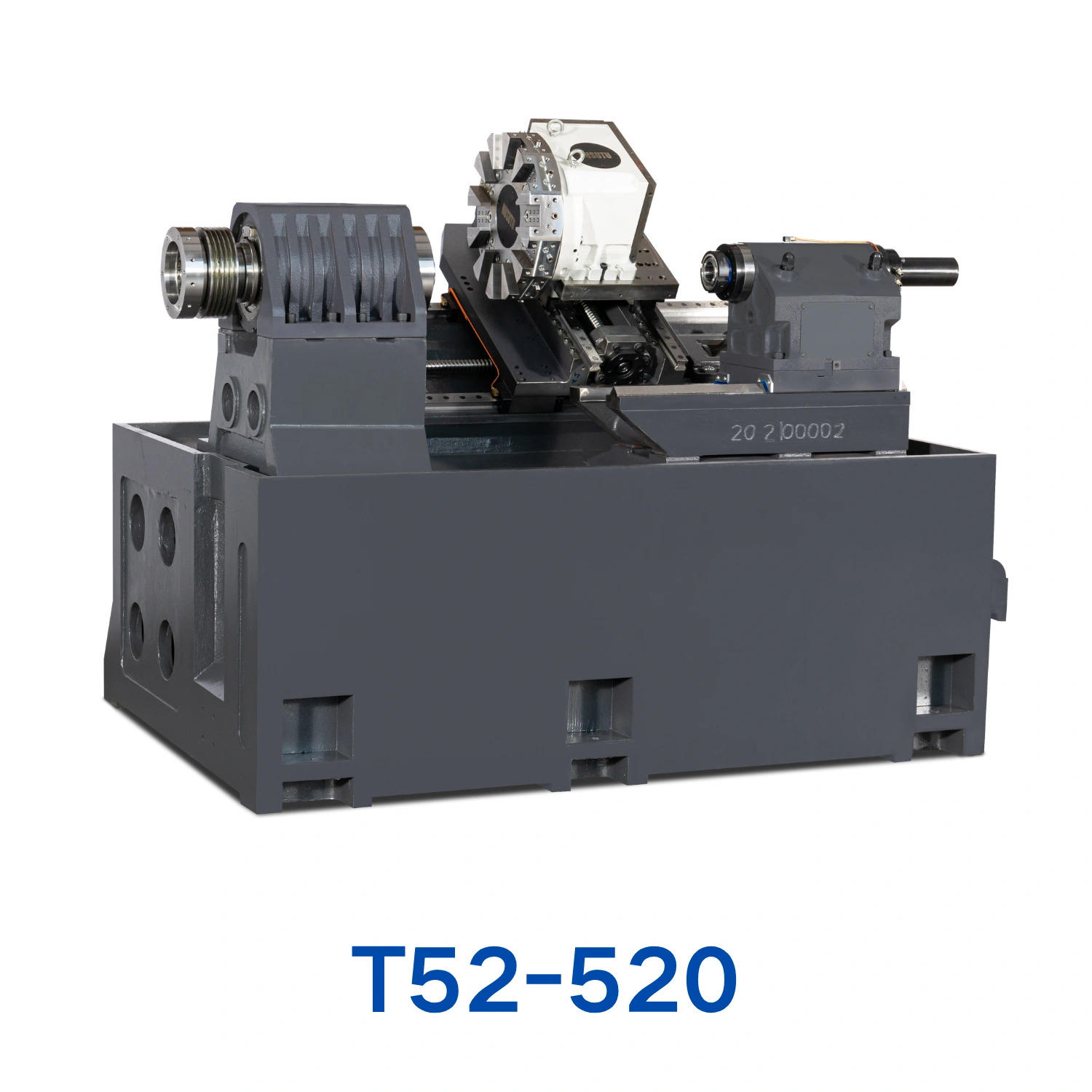

| Bed structure | Integrated 30-degree slant bed |
| Spindle nose | A2-5 / A2-6 / A2-8 options |
| Tailstock | Hard rail / linear rail options |
| Chip conveyor | Side mounted / rear mounted options |
